Discussion Starter #1
Disclaimer: I do not condone the inactivation of daytime running lights (DRLs). If you do this DIY and inactivate your DRLs, you will likely crash and be killed or severely injured.

Okay, this DIY will allow you to turn off your DRLs and run that tiny light under your low beam with or without your fogs. People have their own reasons for wanting to inactivate DRLs so please, let's not turn this into a "why shut off the DRLs, they are a safety feature" thread. The goal is to run a parking light trigger wire from the HL switch to the Central Electric Control Module (CECM) under the drivers side dash.

Another thing is that my car has xenons and so I can't speak to this working on halogen equipped cars, though I suspect it will. Also I chose to use a non-auto Euro switch because I don't have a light sensor and don't plan to retrofit one (if its even possible).

What you need:
1. European spec HL switch (PN: 3C8941431QXSH)
2. VW repair wire (PN: 000979009E)
3. T-20 torx
4. Flashlight
5. Metal pick (straight or curved)
6. Electrical tape
7. VAG-COM / VCDS
8. DVOM (optional to test pins)

Step 1- First you need to disable your DRLs using VCDS. For xenon-equipped cars: module 09-central electrics > coding > long coding helper. Once in the helper you need to uncheck 3 boxes (wording may be a little different than what I have here - my memory is poor):
1. DRL switch installed
2. Separate DRL installed
3. DRL

Once you do this, confirm that the DRLs are off and that green "DRL" symbol on your dash is off with the headlight switch in the "O" position (off).

Step 2- Install your European HL switch. To remove your stock HL switch do the following:

1. In the 'Off position - O' depress the dial until it stops;


2. Turn dial clockwise towards the 'On' position;


3. You will feel a click, then just pull the switch out;


Now you need to disconnect the harness from the switch. On the right side of the harness there is a small tab. Push the tab in and pull the harness off. Pull a little excess wiring out of the dash so you have something to work with.

Once the harness is off and holding it with the tab to the right, you will notice that the third slot from the right is empty. That is slot #3. To confirm, look in the back of the HL switch where the harness was. You will see numbering from 1-5 and the 6-10 for the two rows.

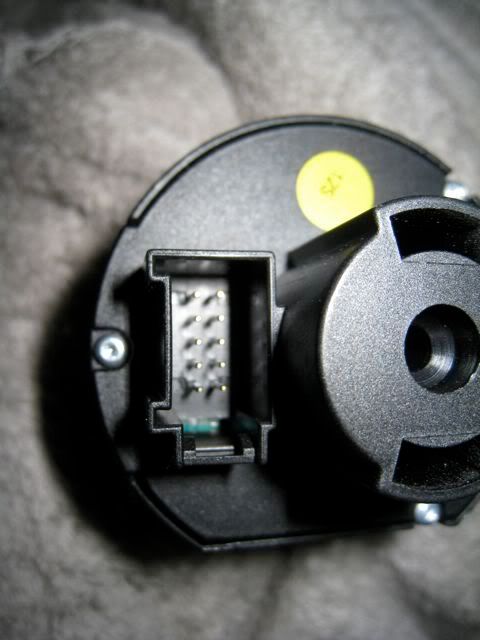

The row on the left, 3rd pin from the bottom is pin 3. It is the same on the European switch.

Step 3- Test your Euro switch to be sure that pin #3 is for the parking lights, or take my word for it. Dana @ Ross Tech has already worked out the pins for both the HL switch and the connector in the CECM. I used a voltmeter to double check but I trust her for sure. To do this put the switch in the parking light position (=><=) and check the resistance between pins 3 and 8. Should be null. The pin assignments on the European HL switch are:

8 & 9 = Constant in off position (DRL/TFL)
8 & 3 = Parking
8 & 1 = On
8 & 5 = Fog Ft.
8 & 7 = Fog Rear

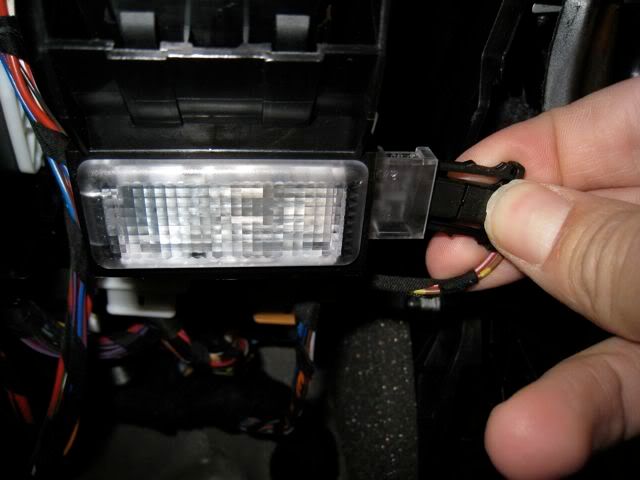

Step 4- Expose the 52 pin connector at the CECM. This is a PITA because of access. Move your drivers seat all the way back and locate the footwell light. Disconnect the harness (pulls right out) and unscrew the single torx screw (T-20) that anchors it to the dash.

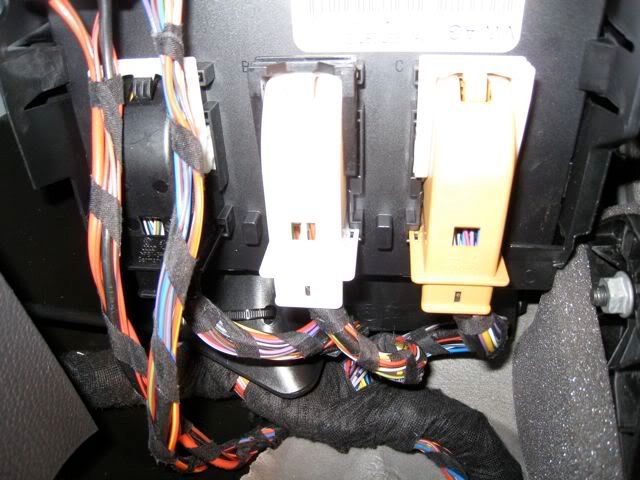

Above the footwell light you will see the CECM with 3 large connectors on it:

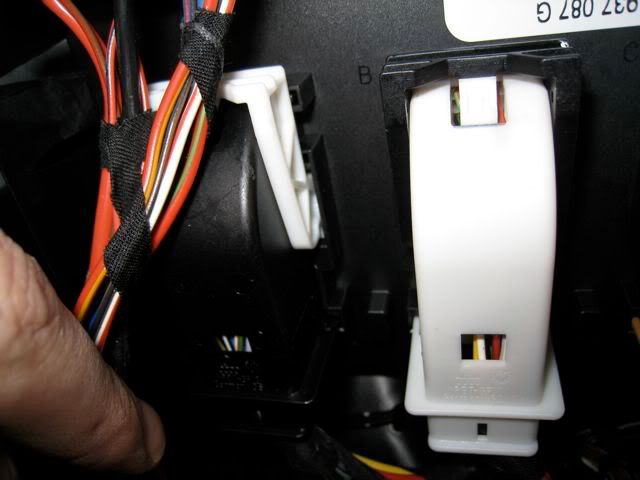

The black one to the left is where the parking light pin is located. To get the connector off, pull the white plastic level over the connector. This holds it to the CECM.

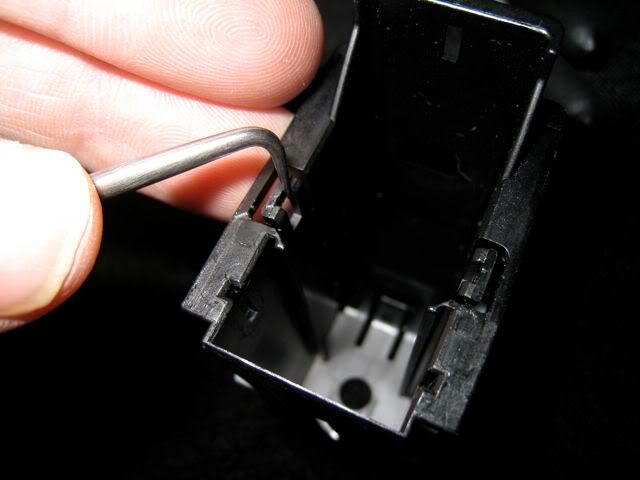

The harness then will pull straight out. To access the pins the harness needs to be disassembled. First remove the outer shell with the white latch on it. There are 2 small tabs that you need to push in to remove the core that has all the wires going into it. This is the tab location on the shell:



This is what it looks like when you start to pull the shell off (notice the tabs towards the bottom of the photo):



This is the outer shell completely removed:



Once the outer shell is off you will have to split the wire harness in half. It has a joint down the center, almost like a dovetail, and the two halves just slide apart. You may have to cut a little of the fabric tape around the wire loom to have enough slack to split the harness. Here are the two sides once split apart:

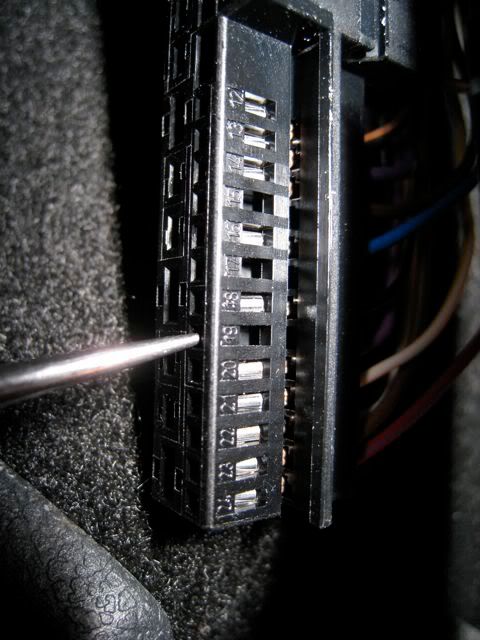

Step 5- Find the slot for pin #19. This is for the parking light input signal. The numbers are imprinted just above the bottom edge. Here is slot #19:

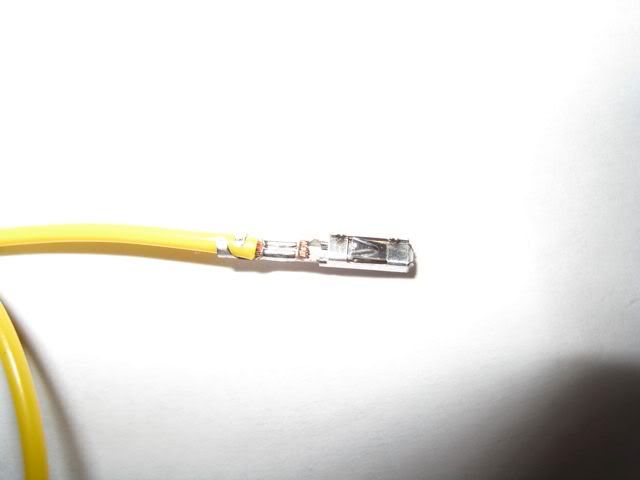

Step 6- Connect pin #3 on the HL switch with pin #19 on the 52 pin CECM harness. Take your yellow VW repair wire and snake it through the hole in the dash where the HL switch was and send it down to the CECM area. This takes some time and a good light. Here is your wire:

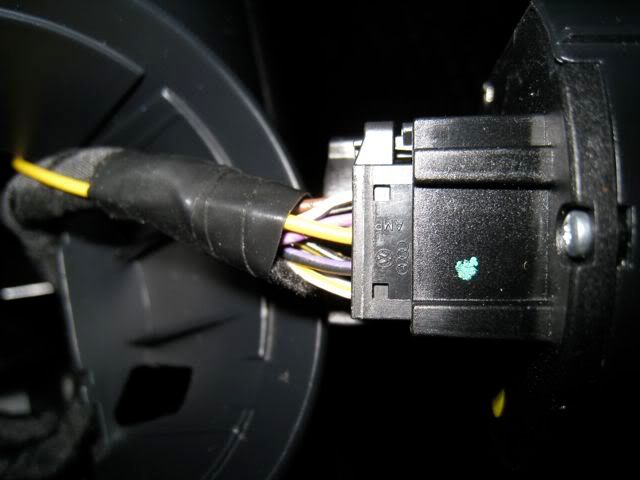

Once the wire is snaked through, simply push one end into the HL switch harness at slot #3 and tape it to the preexisting wires so that you don't pull it out while working at the other end. Reinsert the harness back into the HL switch. Here is the new wire taped to the others:

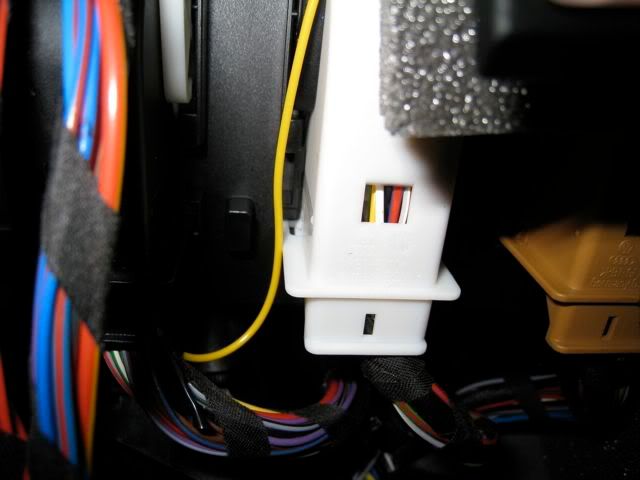

Now push the other end of the wire into slot #19 on the CECM harness. Reassemble the 52 pin connector, tape the yellow wire to the existing wire loom, and then push the harness back into the CECM. Slide the white latch back and that locks it into place. Here is the connector back in place:

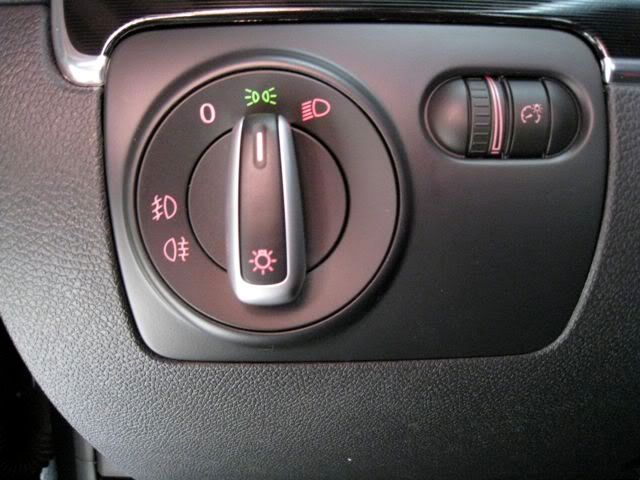

Step 7- Test it out. Push the new HL switch into the dash. Once the ignition is on the parking position (=<>=) lights up green with the dial in ALL positions:



Here are the lighting configurations with pics:
1. Off position (O) - no lights

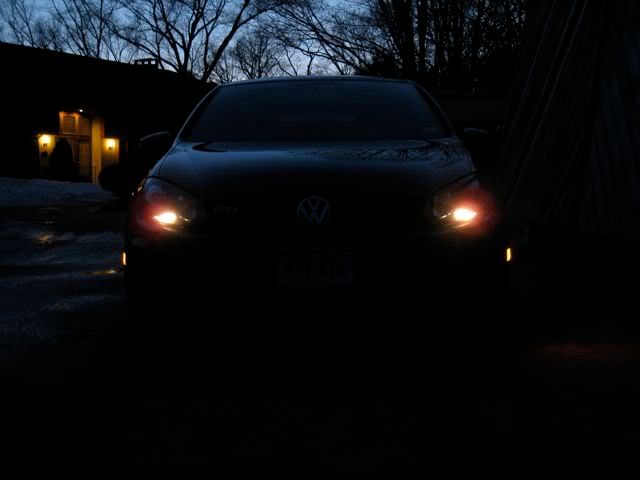

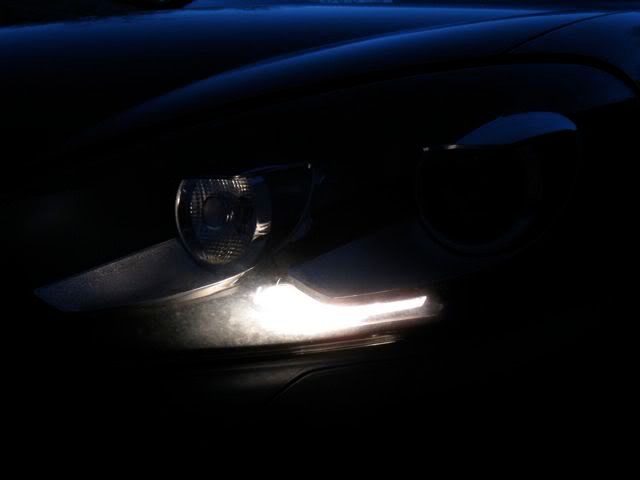

2. Parking position (=<>=) - small parking lights, side markers, and tails


3. Parking position + fogs - above + fogs


4. Low beam position - small parking lights, side markers, tails, low beams
5. Low beam + fog - above + fogs

That's it. Good luck and let me know if I can help in any way.


·
Super Moderator
Joined
·
23,902 Posts
Yes, the euro switch has 5 positions: off, parking lights, and headlights. Front fogs or rear fogs can be on with parking or headlights. (north American cars are not equipped with rear fog lights)

Excellent writeup! I will turn this into a FAQ article, many thanks!


·
Super Moderator
Joined
·
23,902 Posts

·
Premium Member
Joined
·
165 Posts
Thanks for the write up.


·
Registered
Joined
·
189 Posts
JTwGTI,

Do you know if the headlight switch would be a place where I could tap into the + which engages the xenon low beams? I'm going to install the Slimline LED TFL DRL's and they have two operating levels. One level is full LED output (when the xenons are OFF) and the other is reduced power (when the xenons are on) from a + source. In my MKV R32 I got the + power from the side marker lights but the MKVI I want to try a different approach. Let me know what you think.


·
Super Moderator
Joined
·
9,140 Posts

If thats a Euro switch then I don't know what they fit to UK models?

Yes, the euro switch has 5 positions: off, parking lights, and headlights. Front fogs or rear fogs can be on with parking or headlights. (north American cars are not equipped with rear fog lights)
Mine has 6 positions: off, auto DRL's, side lamps, headlamps, front fog, rear fog.

The switching is a pain in the backside because you have to have the front fogs on before you can switch the rear fogs on, it should be the other way around.

The fact that "North American cars are not equipped with rear fog lights" I know about from other forums but some say they are fitted in some parts of the States. Its always had me baffled why they aren't mandatory in the States? Don't you have fog in the States? The ones that don't have two reversing lamps.

Show me your rear fog light

Yes nice writeup. ;)

My switch is similar to this switch.


Attachments

·
Super Moderator
Joined
·
23,902 Posts
If thats a Euro switch then I don't know what they fit to UK models?

Mine has 6 positions: off, auto DRL's, side lamps, headlamps, front fog, rear fog.

The switching is a pain in the backside because you have to have the front fogs on before you can switch the rear fogs on, it should be the other way around.

The fact that "North American cars are not equipped with rear fog lights" I know about from other forums but some say they are fitted in some parts of the States. Its always had me baffled why they aren't mandatory in the States? Don't you have fog in the States? The ones that don't have two reversing lamps.
Your switch is called the "coming home" with "auto" switch. We can buy those as aftermarket but they didn't come from the factory like that.

There is almost no fog where I live and it's never thick to the point where you have to drive slow. Every once in a while you hear about a massive pile up of crashes in California where there's fog due to warm air moving over from the water. San Francisco is the classic example. Or it rains there for the first time in a month and people forget you can't drive 90 mph on bald tires.


·
Registered
Joined
·
91 Posts
Rear fog lights are allowed in the US, but not required. Some European manufacturers do deliver cars in the US with them, notably Mercedes, Audi, Saab, Volvo and Jaguar. Others - including VW and BMW - do not equip US-spec cars with them. (Although many BMWs in Canada do have them.) The reasoning behind VW and BMW not including them here is that they feel that the typical US driver doesn't know what they are, or how and when to use them, so it's better to leave them off. Judging from the number of people I see around here (primarily Audi and Volvo drivers) with their rear fog light on in broad daylight or (even worse) on clear, moonlit nights, they may have a point. :bangshead

I've added a rear fog to several of my cars over the years, two or three VWs and one BMW. (One of my BMWs was a graymarket European 1981 E21 323i, it came with the rear fog light pre-installed, of course.) I have not yet decided if I'll add it to my new Golf.


·
Registered
Joined
·
12 Posts
Just an FYI, but I just did this mod on my 2011 TDI JSW and it was plug-n-play. The wire was already there for the parking lights. Of course I didn't realize this until I had disasembled everything... So anyway, just remove and replace. Just that easy.


·
Super Moderator
Joined
·
23,902 Posts
Just an FYI, but I just did this mod on my 2011 TDI JSW and it was plug-n-play. The wire was already there for the parking lights. Of course I didn't realize this until I had disasembled everything... So anyway, just remove and replace. Just that easy.
Were the DRL on or off before you started?

Did the parking lights work as when you were done (parking brake off)?

On the early mk5 Jetta you have to disable DRL for it to work.

Do you have foglights?


·
Registered
Joined
·
12 Posts
Were the DRL on or off before you started?

Did the parking lights work as when you were done (parking brake off)?

On the early mk5 Jetta you have to disable DRL for it to work.

Do you have foglights?

I had disabled the DRLs in the MDI prior to starting. No need for VAG-COM. The parking lights work w/ and w/out the e-brake engaged. No foglights just yet. That's next, now that I know I can turn them on and off. ;-)


·
Super Moderator
Joined
·
23,902 Posts
Thanks for the report. For the searchers and lurkers, you do have to disable DRL before getting the euroswitch to work as intended. Pics are in the mk5 euroswitch writeup. It looks like the Sportwagen uses the mk5 part.


·
Registered
Joined
·
12 Posts
Thanks for the report. For the searchers and lurkers, you do have to disable DRL before getting the euroswitch to work as intended. Pics are in the mk5 euroswitch writeup. It looks like the Sportwagen uses the mk5 part.
Absolutely. I wish I had known. It would have saved me a few minutes of work. Oh well... That's what sites like this are for!


·
Registered
Joined
·
23 Posts
If thats a Euro switch then I don't know what they fit to UK models?


Mine has 6 positions: off, auto DRL's, side lamps, headlamps, front fog, rear fog.

The switching is a pain in the backside because you have to have the front fogs on before you can switch the rear fogs on, it should be the other way around.

The fact that "North American cars are not equipped with rear fog lights" I know about from other forums but some say they are fitted in some parts of the States. Its always had me baffled why they aren't mandatory in the States? Don't you have fog in the States? The ones that don't have two reversing lamps.

Show me your rear fog light

Yes nice writeup. ;)

My switch is similar to this switch.
Ooo, I like the drls, so a switch that has the option is really nice!


·
Premium Member
Joined
·
4 Posts
Were the DRL on or off before you started?

Did the parking lights work as when you were done (parking brake off)?

On the early mk5 Jetta you have to disable DRL for it to work.

Do you have foglights?

Makes me wonder if the same is for the 2010 JSW TDI. I'm supposed to get my switch today, and disabling DRLs was the first thing I did when I bought my VCDS. It appears that pin 3 already has the appropriate wire.


·
Registered
Joined
·
126 Posts
Jerastan, I also have a 2011 TDI JSW...please clarify there were no wiring mods preceding your euro light switch upgrade. I saw your plug-and-play comment, just wanted to make sure that you had not already done some preparatory work for some other customization. Any preceding VAG-COM adjustments? Can you provide the source and P/N for the switch that you used?


·
Registered
Joined
·
1 Posts
Jerastan, I also have a 2011 TDI JSW...please clarify there were no wiring mods preceding your euro light switch upgrade. I saw your plug-and-play comment, just wanted to make sure that you had not already done some preparatory work for some other customization. Any preceding VAG-COM adjustments? Can you provide the source and P/N for the switch that you used?
Can anyone confirm this?
