Many thanks to the donor which let me view this picture. I have edited it to highlight the emissions system and photoshopped out some of the non-emissions related items.
More info on the system can be found in the FAQ article: http://www.myturbodiesel.com/1000q/vw-touareg-tdi-dpf-audi-q7.htmhttp://www.myturbodiesel.com/1000q/DPF-Adblue-FAQ-VW-Audi.htm . This only applies to the Q7. The Touareg has a shorter body and only one Adblue tank. Enjoy!

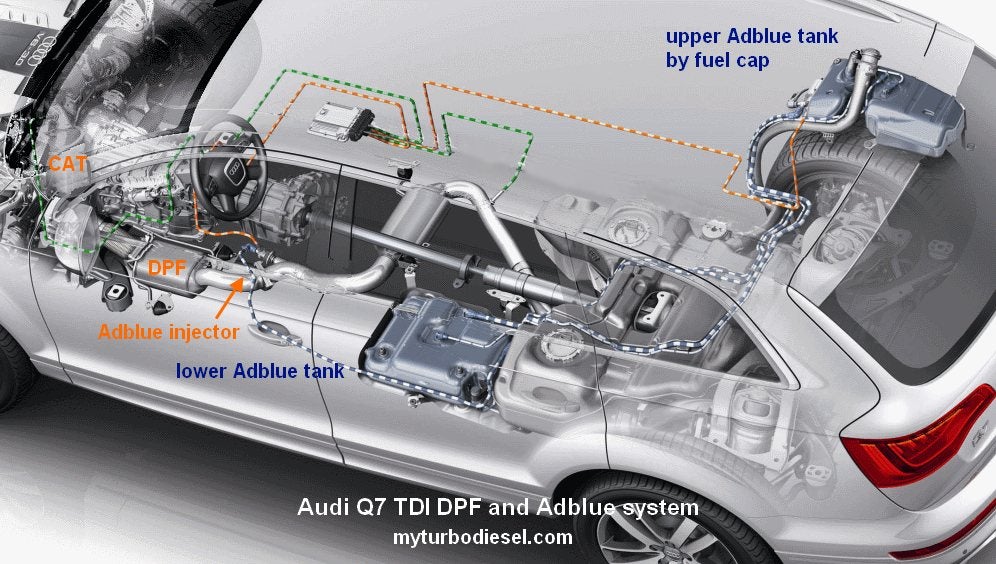

From the earlier post, here is a picture of just the adblue system
More info on the system can be found in the FAQ article: http://www.myturbodiesel.com/1000q/vw-touareg-tdi-dpf-audi-q7.htmhttp://www.myturbodiesel.com/1000q/DPF-Adblue-FAQ-VW-Audi.htm . This only applies to the Q7. The Touareg has a shorter body and only one Adblue tank. Enjoy!

From the earlier post, here is a picture of just the adblue system
