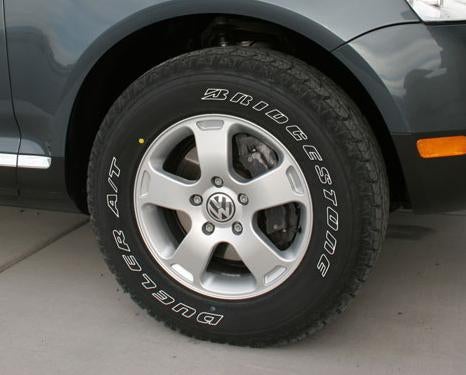

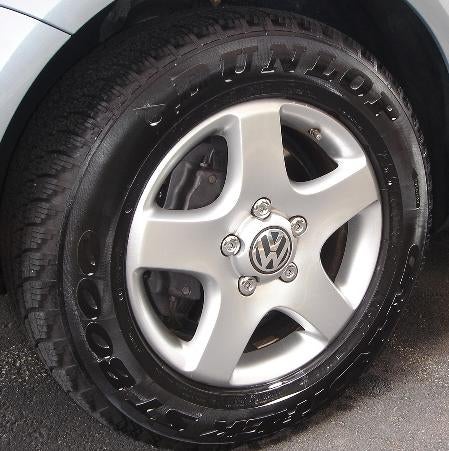

| VW Canyon | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 55 | Wheel part # | 7L6 601 025 b z31 |
| Stock tire size | 235/65 R17 | Center cap part # | 7L6 601 149 |
| misc notes | weight (lbs) | 28 | |
| misc notes | standard on v6 touareg | ||
| VW tangis | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 55 | Wheel part # | 7L0 071 497 666 |
| Stock tire size | Center cap part # | ||
| misc notes | 04-05 touareg | weight (lbs) | |
| misc notes | (Caution: also available in 15" and 16" in 5x112 bolt pattern) | ||
| aftermarket wheels, probably AT Italia | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | weight (lbs) | ||
| misc notes | |||

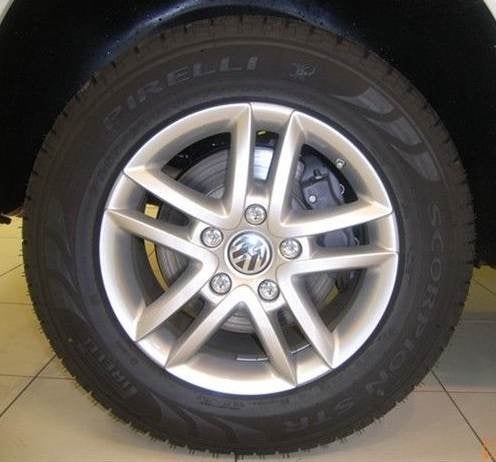

| VW Maluku | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 55 | Wheel part # | 7L6 601 025 ak 8z8 |
| Stock tire size | Center cap part # | 7L6601025AK 878 (70mm | |
| misc notes | Thanks for the note on the center cap, RP! | weight (lbs) | |
| misc notes | very similar to sienna but more square and smaller | ||
| VW Suez | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 55 | Wheel part # | 7h0 071 497 666 |
| Stock tire size | Center cap part # | 7h0 071 214 | |
| misc notes | 04-05 touareg | weight (lbs) | |
| misc notes | |||
| VW karthoum | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7L0 071 498 1ZL |
| Stock tire size | Center cap part # | 7L6 601 149 | |
| misc notes | 04-05
touareg Caution: also available in 5x112 |
weight (lbs) | |
| misc notes | Named after capital of Sudan, Arabic for end of an elephant’s trunk, referring to confluence of White and Blue Nile river | ||

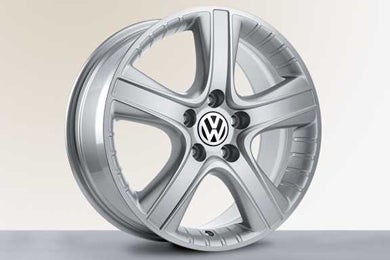

| VW dakar | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | Wheel part # | 7H0 071 498 1ZL | |
| Stock tire size | Center cap part # | ||
| misc notes | 04-05 touareg | weight (lbs) | |
| misc notes | |||

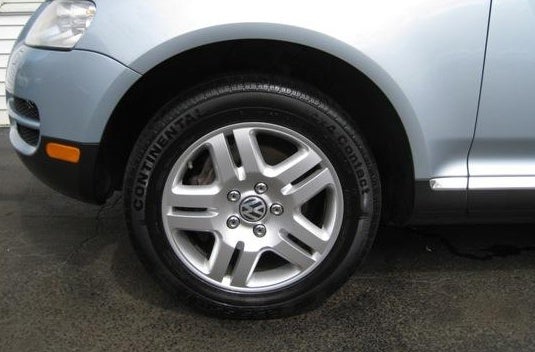

| VW Manhattan | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7L6 601 025 t z31 |
| Stock tire size | 255/55/18 | Center cap part # | 7L6 601 149 |
| misc notes | 04-06 v8 touareg | weight (lbs) | |
| misc notes | |||
| VW fat boy | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7L6 601 025 aa z31 |
| Stock tire size | 255/55 18 | Center cap part # | 7L6 601 149 a z31 |
| misc notes | 07 touareg | weight (lbs) | |
| misc notes | |||

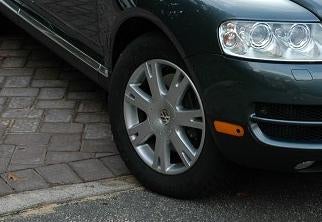

| VW valley | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7L6 601 025 k 8z8 |
| Stock tire size | 255 | Center cap part # | 7L6 601 149 g 8z8 |
| misc notes | weight (lbs) | ||
| misc notes | 07+ touareg standard on se | ||
| Audi Q7 wheel | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 58 | Wheel part # | 4L0 601 025 b |
| Stock tire size | 285/60-18 | Center cap part # | 4L0 601 170 |
| misc notes | Audi Q7 | weight (lbs) | |
| misc notes | very similar to Touareg's "sienna" wheel | ||

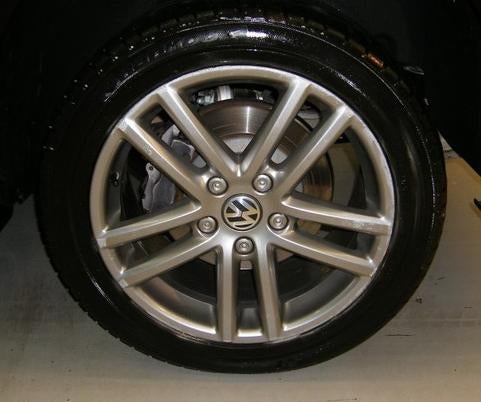

| VW sienna | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | 275/45/19 | Center cap part # | |
| misc notes | standard on
altitude trim 07+ touareg |
weight (lbs) | |
| misc notes | very similar to a q7 wheel and malaku but rounder also similar to 17" sienna found on EOS, diff bolt pattern | ||

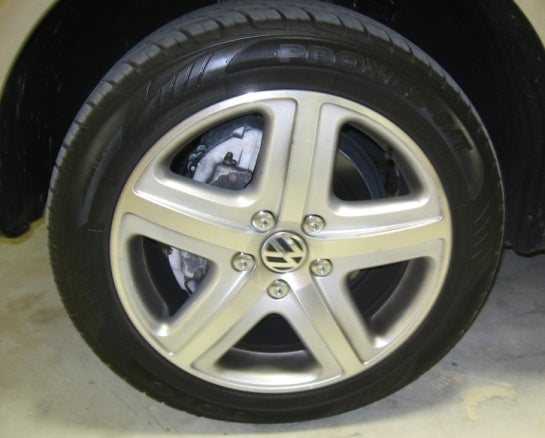

| VW Atheo | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7l6 601 025 d z31 |
| Stock tire size | 275/45/19Y | Center cap part # | 7l6 601 149 qld |
| misc notes | optional on v8 | weight (lbs) | |
| misc notes | v8 touareg 04-08 | ||
| VW Desert | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L6 601 025 n 8z8 |
| Stock tire size | 275/4519 | Center cap part # | 7L6 601 149 b rbc |
| misc notes | weight (lbs) | ||
| misc notes | |||

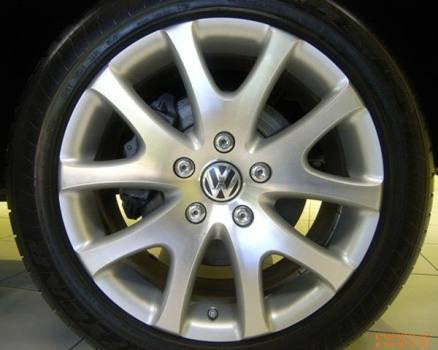

| VW terra | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L6 601 025 am 8z8 |
| Stock tire size | 275/45/ 19 | Center cap part # | 7L6 601 149 rbc |
| misc notes | 07+ touareg | weight (lbs) | |
| misc notes | |||

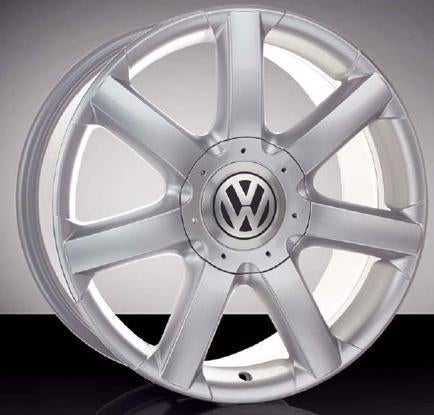

| VW namib | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L0 071 499 666 |
| Stock tire size | 275/45/19 | Center cap part # | 7L0 071 214 |
| misc notes | 04-05 touareg | weight (lbs) | |
| misc notes | thin 7 spoke Caution: namib also avail in 5x112 | ||

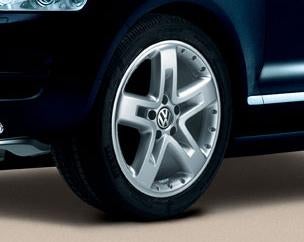

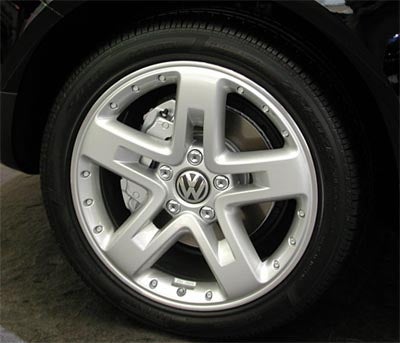

| VW Atlas | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L0 071 490 1zL |
| Stock tire size | Center cap part # | 7l6 601 149 qld | |
| misc notes | 03-08 touareg | weight (lbs) | |
| misc notes | |||

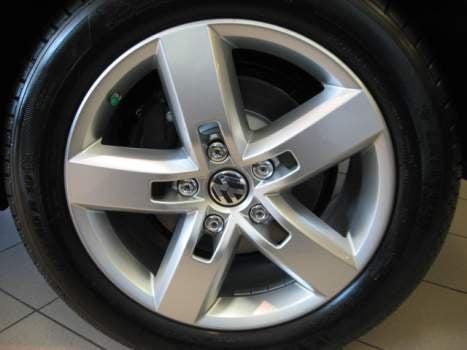

| VW Everest | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 8.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 59 | Wheel part # | 7p6 601 025 d 8z8 |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | Looks similar to Atlas | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||

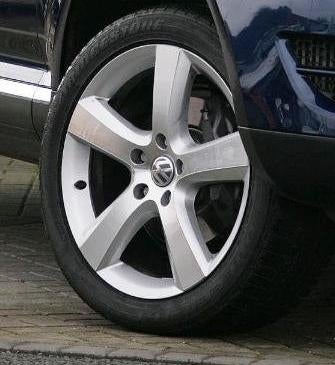

| VW Ayers Rock | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L6 601 025 ap 8z8 |
| Stock tire size | 275/40/20 | Center cap part # | 7L6 601 149 a z31 |
| misc notes | 07+ touareg | weight (lbs) | |
| misc notes | |||

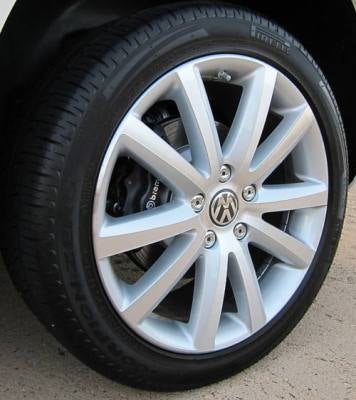

| VW Mountain | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 7L6 601 025 p 8z8 |
| Stock tire size | 275/40/20 | Center cap part # | 7L6 601 149 rvc |
| misc notes | 07+ touareg w12 sport or option | weight (lbs) | |
| misc notes | |||
| VW Casablanca | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | 275/40/20 | Center cap part # | |
| misc notes | 07+ touareg | weight (lbs) | |
| misc notes | |||
| Audi Q7 doppelspeiche (double spoke) | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 4L0 073 450 mc 1zl (brilliant silver) OR 4L0 073 460 mc 1zL (bright aluminum machined, left side) and 4L0 073 360 mc 1zL (right side) |
| Stock tire size | 275/40/20 | Center cap part # | |
| misc notes | painted silver, Audi Q7, 10 spokes | weight (lbs) | |
| misc notes | similar to 21" wheel but more spokes, came with summer tires, not for usa? | ||
| Audi Q7 | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 60 | Wheel part # | 4l0 601 025 m 16z |
| Stock tire size | 275/40/20 | Center cap part # | 4l0 601 170 |
| misc notes | 07-08 Audi Q7 | weight (lbs) | |
| misc notes | painted silver or grey | ||

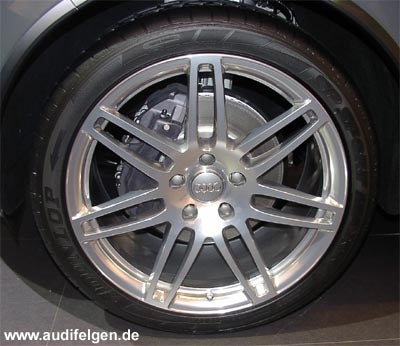

| Audi Q7 dual spoke 6 | |||
| Wheel diameter (in.) | 21 | Wheel width (in.) | 10 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 44 | Wheel part # | 4l0 601 025 l z33/4ee |
| Stock tire size | 275/40 -19 | Center cap part # | 4l0 601 170 |
| misc notes | q7 07-08 | weight (lbs) | |
| misc notes | similar to 20" wheel but less spoke | ||
| VW Karakum | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 53 | Wheel part # | 7p6 601 025 c 88z |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Gironia | |||
| Wheel diameter (in.) | 19 | Wheel width (in.) | 8.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 59 | Wheel part # | 7p6 601 025 k 8z8 |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Metropolitan | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7p6 601 025 g 3aj |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg, color is burnished aluminum | ||
| VW Pikes Peak | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 | Wheel part # | 7p6 601 025 e 88z |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | weight (lbs) | ||
| misc notes | 2011+ VW Touareg | ||
| VW Sonora | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 50 | Wheel part # | 7p6 601 025 8z8 |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Atacama | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 50 | Wheel part # | 7p6 601 025 a 88z |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Tacora | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 53 | Wheel part # | 7p6 601 025 b 8z8 |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Yukon | |||
| Wheel diameter (in.) | 18 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 53 | Wheel part # | 7p6 601 025 j 8z8 |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
| VW Mallory | |||
| Wheel diameter (in.) | 20 | Wheel width (in.) | 9 or 9.5" wide |
| Wheel lug pattern (mm) | 5x130 | Wheel centerbore (mm) | 71.5 |
| Wheel offset (mm) | 57 (9") or 59 57 (9.5") |
Wheel part # | 7p6 601 025 L 88z (9") or 7p6 601 025 n 88z (9.5") |
| Stock tire size | Center cap part # | 3b7 601 171 | |
| misc notes | no pic, do you have one? | weight (lbs) | |
| misc notes | 2011+ VW Touareg | ||
Search the site for more wheels:
copyright ©myturbodiesel.com 2006-2010 all rights reserved.
