19", 20", and 21" OEM VW and Audi stock
wheel picture gallery - 5x112 bolt pattern
Here are part numbers, widths, and specifications like part numbers for OEM VW and Audi 19, 20, and 21"
rims.
Do you have a better picture, own one of these pictures, or see an error? Please post the correction in the forums or email me at
and
I will change it asap for your benefit, thank you! back to 1000q: VW and Audi wheel gallery index
VW omanyt |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
3d0 601 025 p 8z8 |
Wheel offset (mm) |
40 |
Center cap part # |
3d0 601 149 h 8z8 |
Stock tire size |
275/40-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
02-07 phaeton |
weight (lbs) |
33 |
misc notes |
|

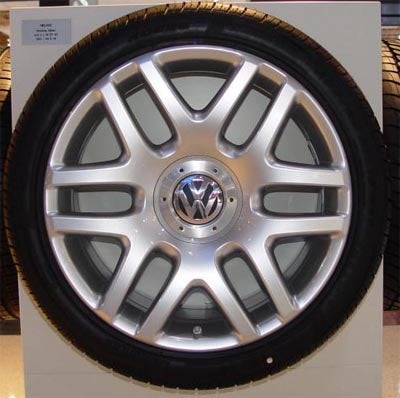

VW helios |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
3D0 071 492 666
OR 3d0 601 025 j (88z chrome) |
Wheel offset (mm) |
45 |
Center cap part # |
3d0 601 149 j
8z8 |
Stock tire size |
275/40-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
02-07 phaeton |
weight (lbs) |
31 |
misc notes |
greek god of the sun |

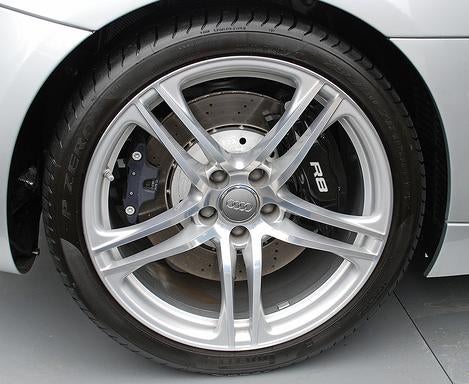

Audi R8 split spoke
wheel (front only, rear wheel is
11" wide) in silver |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
420 601 025 b
z33/z17 |
Wheel offset (mm) |
42 |
Center cap part # |
4b0 601 170 a
7zj |
Stock tire size |
235/35-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
from Audi R8,
polished spokes and clear coat |
weight (lbs) |
front wheel: 30 |
misc notes |
|

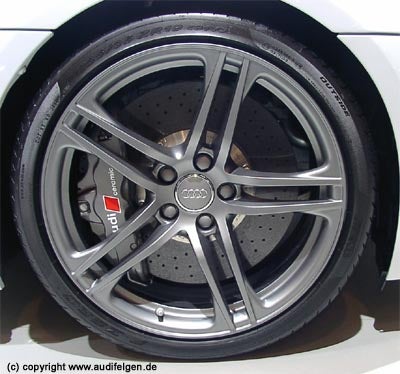

Audi R8 split spoke
wheel (front only, rear wheel is
11" wide) in grey |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
420 601 025 j 3aj |
Wheel offset (mm) |
42 |
Center cap part # |
4b0 601 170 a
7zj |
Stock tire size |
235/35-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
from Audi R8, grey
color |
weight (lbs) |
front wheel
only, 30 lbs |
misc notes |
|

Audi RS4 RS4 Titan
Edition in grey |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
8e0 601 025 be |
Wheel offset (mm) |
29 |
Center cap part # |
4b0 601 170 a
7zj |
Stock tire size |
235/35-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
rs4 titan edition |
weight (lbs) |
33 |
misc notes |
|

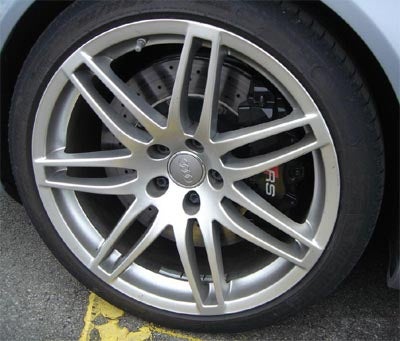

silver "Double
spoke wheel" found on Audi rs4 |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
8e0 601 025 ag 1h7 |
Wheel offset (mm) |
29 |
Center cap part # |
4f0 601 170 a
7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
silver |
weight (lbs) |
|
misc notes |
|

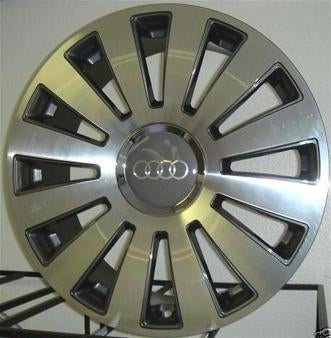

Audi A8 19 |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4e0 601 025 (ag
3aj silver) (n qpw polish) |
Wheel offset (mm) |
40 |
Center cap part # |
4e0 601 165 a 7zj |
Stock tire size |
215/35-19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
03-06 A8 |
weight (lbs) |
|
misc notes |
forged, also
avail in 18" style |

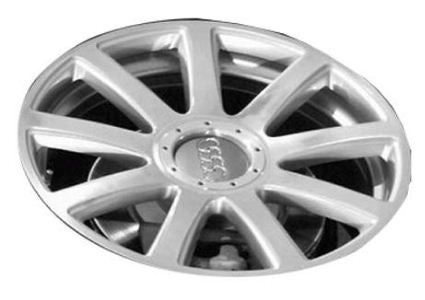

Audi a8 20 |
Wheel diameter (in.) |
|
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
|
Wheel offset (mm) |
|
Center cap part # |
|
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
05-06 A8 |
weight (lbs) |
|
misc notes |
|

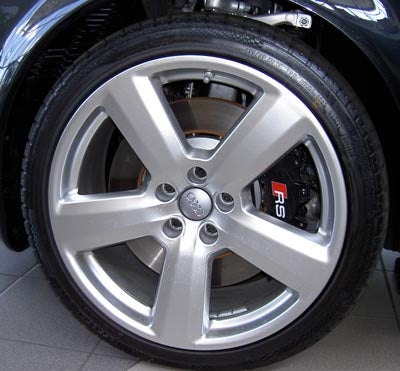

VW Audi a8/rs6 wheels flat
spoke in silver |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4b3 601 025 q 1h7 |
Wheel offset (mm) |
35 |
Center cap part # |
4b0 601 170 7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
05-06 A8 v8/rs6
03-05 |
weight (lbs) |
|
misc notes |
also avail
in grey |

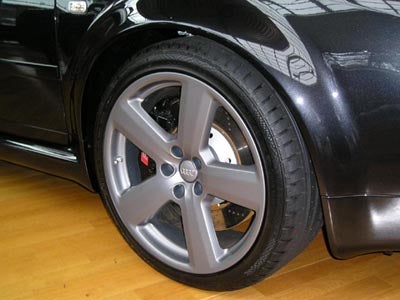

Audi a8/rs6 wheels flat
spoke in grey |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4b3 601 025 q 8au |
Wheel offset (mm) |
35 |
Center cap part # |
4b0 601 170 7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
05-06 A8 v8/rs6
03-05 |
weight (lbs) |
|
misc notes |
same as above
but grey |

Audi a8/rs6 wheels flat
spoke in silver with different offset |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4e0 601 025 ad 1h7 |
Wheel offset (mm) |
44 |
Center cap part # |
4b0 601 170 7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
05-06 A8 v8/rs6
03-05 |
weight (lbs) |
|
misc notes |
same as
above but different offset |

Audi A8 |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
|
Wheel offset (mm) |
40 |
Center cap part # |
|
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
no picture, 06 A8 |
weight (lbs) |
|
misc notes |
option cwo, forked
18 y spoke |
VW telesto |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
|
Wheel offset (mm) |
35 |
Center cap part # |
|
Stock tire size |
275/40 -19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
(euro only)
name is confirmed |
weight (lbs) |
|
misc notes |
phaeton european model |
19" Calera
Wheel |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4f0 071 299 666 |
Wheel offset (mm) |
46 |
Center cap part # |
4b0 601 170 a
7zj |
Stock tire size |
05-08 a6 |
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
|

Audi fin spokes |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4f0 601 025 at 8z8 |
Wheel offset (mm) |
52 |
Center cap part # |
4f0 601 165 n
7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
a6 05-08 |
weight (lbs) |
|
misc notes |
|

VW sagitta |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
1K8 071 499 QQ9 (titanium color) |
Wheel offset (mm) |
41 |
Center cap part # |
|
Stock tire size |
235/35R19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
|

VW motorsport |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
1K8 071 499 A AX1 |
Wheel offset (mm) |
41 |
Center cap part # |
|
Stock tire size |
235/35R19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
|

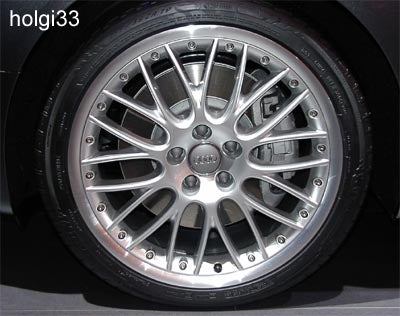

Audi bbs 8.5" wide |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4f0 601 025 l 1h7 |
Wheel offset (mm) |
48 |
Center cap part # |
4f0 601 170 a 7zj |
Stock tire size |
|
Wheel centerbore (mm) |
|
misc notes |
a6 05-08 |
weight (lbs) |
|
misc notes |
2 piece wheel, narrow version different
offset, pictured below |
Audi bbs 9" wide |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
4f0 601 025 am 1h7 |
Wheel offset (mm) |
41 |
Center cap part # |
4f0 601 170 a
7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
a6 05-08 |
weight (lbs) |
|
misc notes |
2 piece wheel, wide version different
offset, pictured below |

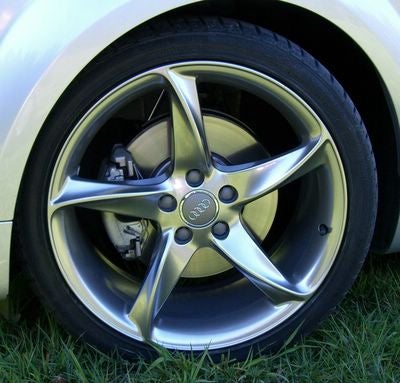

Audi Turbo aka. twisted spoke |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
8j0 071 499
w90 |
Wheel offset (mm) |
52 |
Center cap part # |
4f0 601 170 a
7zj |
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
also
avail in black |
weight (lbs) |
|
misc notes |
07-08 Audi TT |

Audi wheels |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
8t0 601 025 f w90 |
Wheel offset (mm) |
32 |
Center cap part # |
4f0 601 165 n 7zj |
Stock tire size |
255/35/19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
Audi A5 |

Audi wheels |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
8.5 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
8k0 601 025 ak 1h7 |
Wheel offset (mm) |
43 |
Center cap part # |
8t0 601 170 a |
Stock tire size |
255/35/19 |
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
s line package |

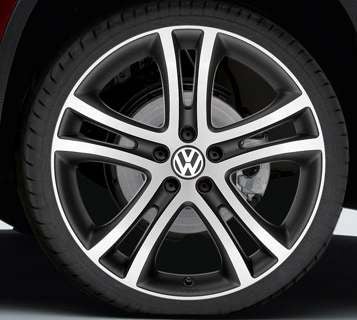

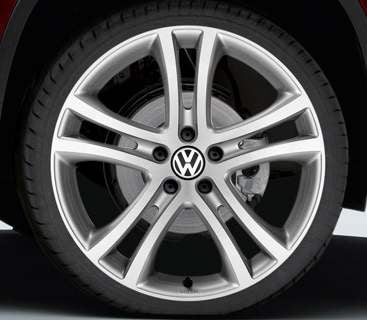

VW Savannah |
Wheel diameter (in.) |
19 |
Wheel width (in.) |
9 |
Wheel lug pattern (mm) |
5x112 |
Wheel part # |
5N0 071 499 666 (silver gloss turned, on left)
5N0 071 499 AX7 (anthracite gloss turned machined, on right) |
Wheel offset (mm) |
33 |
Center cap part # |
|
Stock tire size |
|
Wheel centerbore (mm) |
57.1 |
misc notes |
|
weight (lbs) |
|
misc notes |
|
