Here are pictures and specs of OEM 15" VW wheels that use 5x112 hubs.

VW boogie
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) Wheel part # 380 071 498 666
Stock tire size   Center cap part #
misc notes 98-01 passat weight (lbs)
misc notes

VW tangis
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 50 Wheel part # 1t0 071 495 666
Stock tire size   Center cap part # 6q0 071 213
misc notes also available in 16" 5x112 and 17"- 5x130 touareg weight (lbs)
misc notes looks like vitus but with 6 instead of 7 spokes

VW vitus
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) Wheel part # 2k1 071 495 a 666
Stock tire size   Center cap part #
misc notes also avail in 14 and 16" weight (lbs)
misc notes looks exactly like tangis but with 7 spokes instead of 6

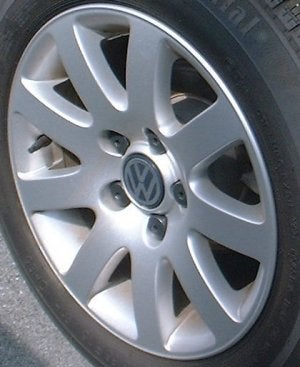

VW wellington
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 37 Wheel part # 3B0 601 025K Z31
Stock tire size   Center cap part # 7D0 601 165 bxf
misc notes 01-05 passat weight (lbs)  20
misc notes

VW rondo
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) Wheel part # #380 071 490 666 (passat), #7d0 071 490 666 (eurovan)
Stock tire size   Center cap part #
misc notes 98-01 passat, eurovan weight (lbs)
misc notes

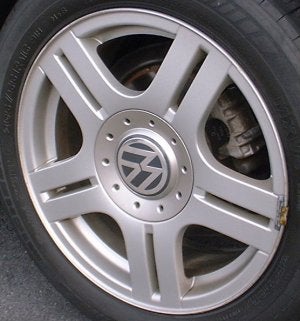

VW montreal (for passat, also in 16)
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 45 Wheel part # 8D0 601 025D Z17
Stock tire size   Center cap part # 3B0 601 149 D
misc notes 98-02 passat vr6 weight (lbs)
misc notes Similar to montreal in 5x100 but with thin spaced spokes

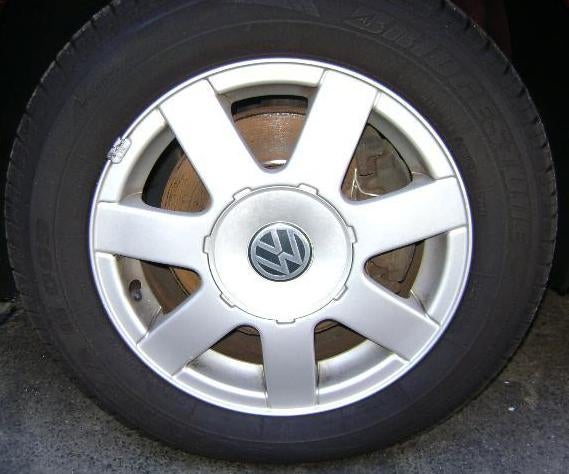

VW adelaide
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 45 Wheel part # 3B0 601 025A
Stock tire size   Center cap part # 3B0 601 149
misc notes 98-01 passat vr6 weight (lbs)
misc notes Same name as 16x7 wheel but completely different style

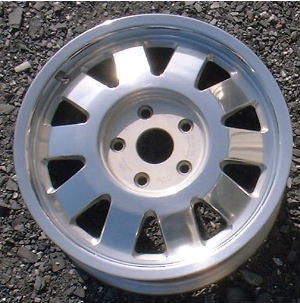

VW 15 polished wheel "avus silver"
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 45 Wheel part # 8d0 601 025 D
Stock tire size   Center cap part #
misc notes 00-01 passat weight (lbs)
misc notes

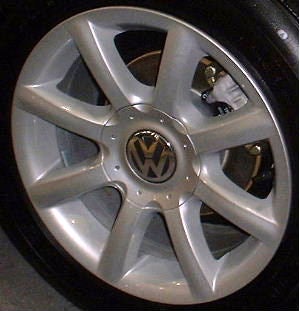

VW michigan (picture may be namib)
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 5x112 Wheel centerbore (mm) 57.1
Wheel offset (mm) 37 Wheel part # 3B0 601 025S
Stock tire size   Center cap part #
misc notes weight (lbs)
misc notes 02-05 1.8T passat
