15" and 16" 5x112 wheels from Audi. Note: some of these
wheels have an identical design but are in 4x130 bolt pattern. These

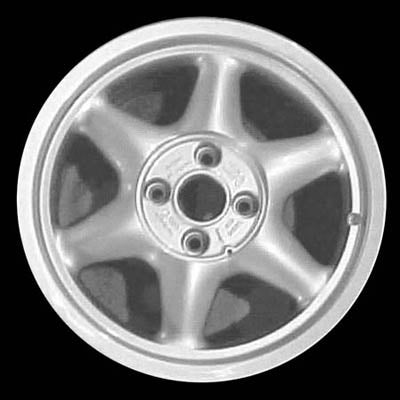

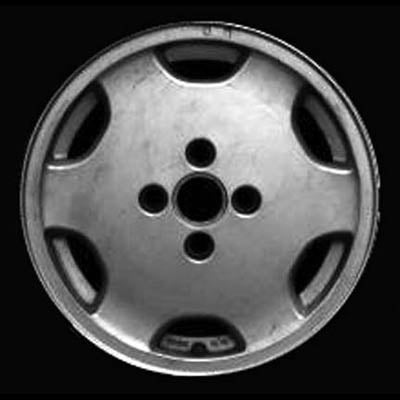

wheels are noted as such, wheels are from the audi 90, cab wheels=4x108 bolt pattern
audi 100 after 1992, v8 wheels = 5x112 bolt pattern. Do you have a better picture or see an error? Please post the correction
in the forums or email me at
and
I will change it asap for your benefit, thank you!
| a4 15 flat wheels | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 4b0 601 025 B |
| Stock tire size | Center cap part # | ||
| misc notes | 98-01 1.8T a4 | weight (lbs) | |
| misc notes | |||

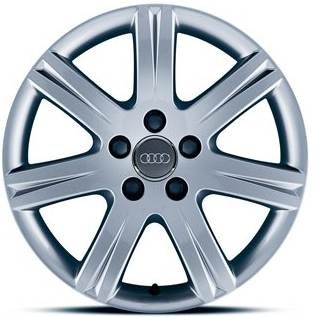

| Abitos seven arm | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | 8p0 071 496 e 666 | |
| Stock tire size | Center cap part # | 4b0 601 170 a 7zj | |
| misc notes | winter wheel option | weight (lbs) | |
| misc notes | |||

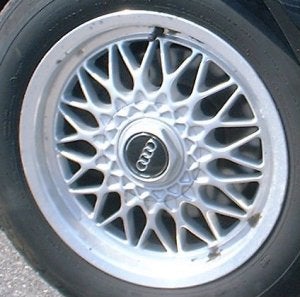

| Audi v8 crosslace BBS RG 7.0" wide | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7.0 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 40 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 92-94 audi v8, audi 100 | weight (lbs) | |
| misc notes | |||
| Audi v8 crosslace BBS RG 7.5" wide | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 35 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 92-94 audi v8, audi 100 | weight (lbs) | |
| misc notes | |||

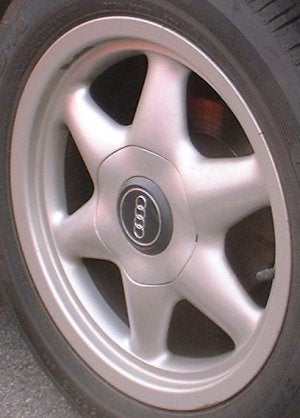

| Audi a6 6 thin spoke wheel | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 40 | Wheel part # | 4a0 601 025D |
| Stock tire size | Center cap part # | 4a0 601 165 | |
| misc notes | 95-98 a6 | weight (lbs) | |
| misc notes | caution - also avail in 4x130 bolt pattern | ||

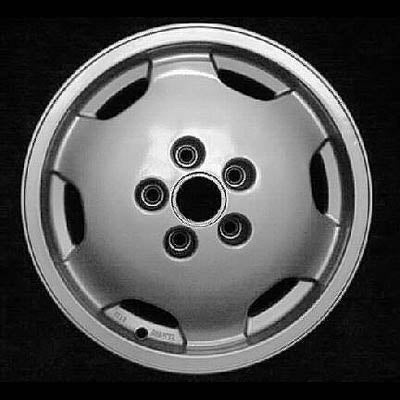

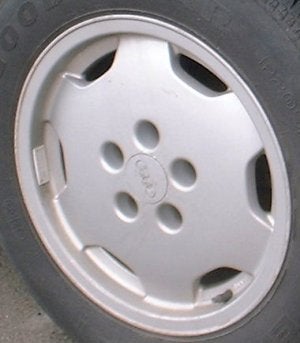

| Audi 6 slot wheels 6" wide | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 4a0 601 025 A |
| Stock tire size | Center cap part # | ||
| misc notes | a6 | weight (lbs) | |
| misc notes | |||
| Audi v8 6 slot 7" wide | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 35 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 91-94 audi v8, 92-94 audi 100, | weight (lbs) | |
| misc notes | |||

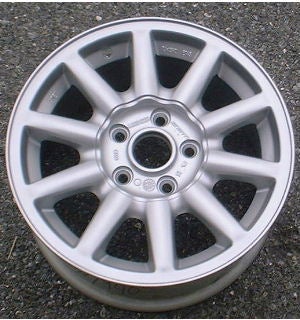

| Audi thin 10 spoke | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6-7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45, 47 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | caution - also avail in 4x130 bolt pattern | weight (lbs) | |
| misc notes | 95-98 a6, 96-01 a4 1.8T, 92-94 audi 100 | ||
| a6 BBS RG | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 35 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 95-98 a6 | weight (lbs) | |
| misc notes | |||

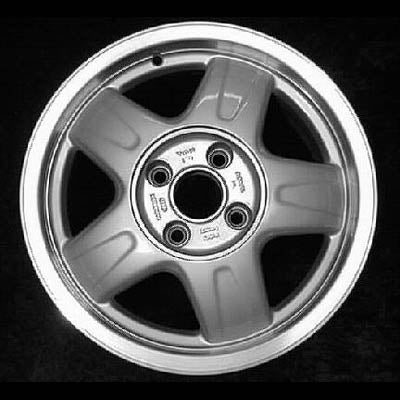

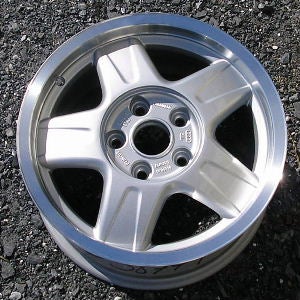

| Audi a6 grooved spoke wheel | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 98-01 a6, 93-94 audi 100 | weight (lbs) | |
| misc notes | caution - also avail in 4x130 bolt pattern | ||
| Audi a6 8 spoke wheels | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 8d0 601 025B |
| Stock tire size | Center cap part # | ||
| misc notes | 95-98 a6, a4 | weight (lbs) | |
| misc notes | Like swing but 15" diameter instead of 16" and 8 spoke | ||
| Audi a4 swing | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 8b0 601 025 J |
| Stock tire size | Center cap part # | ||
| misc notes | a4 98-00 | weight (lbs) | |
| misc notes | also used on VW passat | ||
| Audi a4 flat spoke | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 39 | Wheel part # | 8e0 601 025 z17 |
| Stock tire size | Center cap part # | 4b0 601 170 7zj | |
| misc notes | 01-05 a4 | weight (lbs) | 17 lbs (thanks Matt!) |
| misc notes | similar to below wheel but exposed lug hole | ||

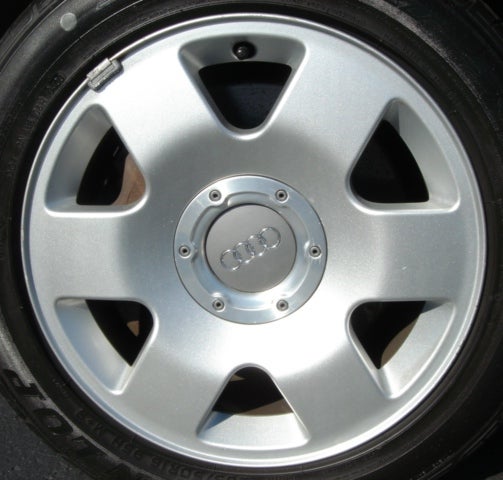

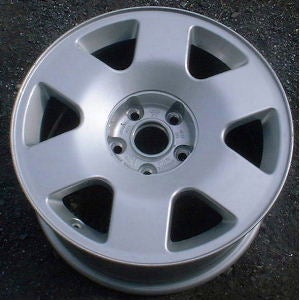

| Audi a6 broad 6 spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 or 8 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 35 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 00-04 a6, 01-03 allroad | weight (lbs) | |
| misc notes | similar to above wheel but covered lug holes | ||

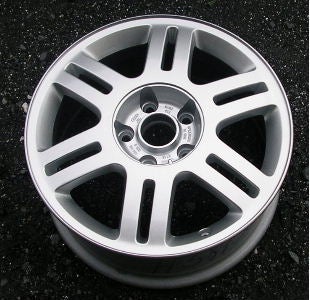

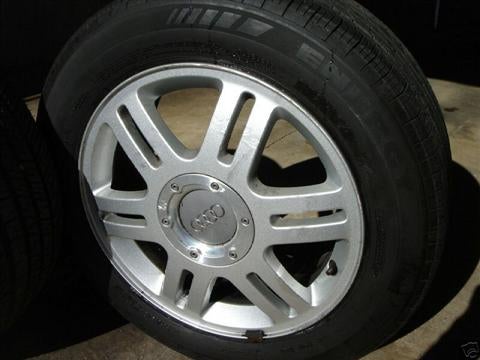

| audi speedline wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | |
| Stock tire size | 205/55-16 | Center cap part # | |
| misc notes | weight (lbs) | ||
| misc notes | 00-02 a6, 01-02 allroad | ||

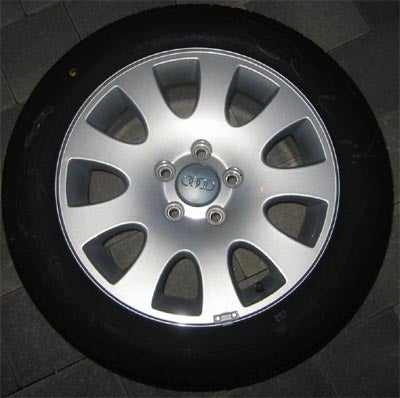

| Audi a6 wheel (aka wineglass?) | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 4b0 601 025 k z17 |
| Stock tire size | Center cap part # | 4b0 601 170 7zj | |
| misc notes | 98-04 a6, 01-03 allroad | weight (lbs) | |
| misc notes | |||
| Audi artis | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 42 | Wheel part # | 8e0 601 025 b z17 |
| Stock tire size | Center cap part # | 4b0 601 170 7zj | |
| misc notes | 2002-2006 a4 | weight (lbs) | about 23 lbs |

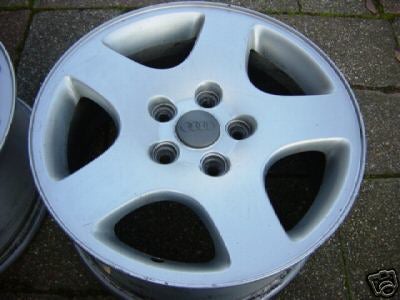

| Audi a4 sport wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 8d0 601 025c |
| Stock tire size | Center cap part # | ||
| misc notes | 96-01 a4, 95-97 s6, 97-99 a8, 01-03 allroad | weight (lbs) | 19 |
| misc notes | similar to below but exposed lug hole | ||
| Audi a4 16 spoke flat wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 42 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 02-05 a4 | weight (lbs) | |
| misc notes | similar to above wheel but covered lug hole | ||
| Audi a6 bi-turbo wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 00-01 a6, 01 allroad | weight (lbs) | |

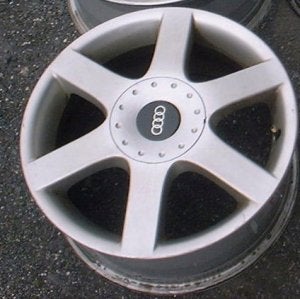

| Audi a4 tango | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 98-03 a4 | weight (lbs) | |

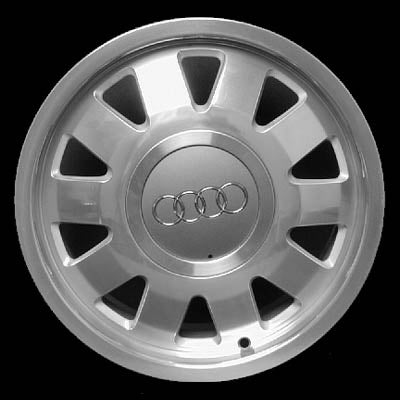

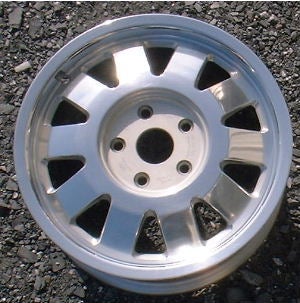

| Audi a4 polished wheel | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 00-01 a4, 01 allroad | weight (lbs) | |

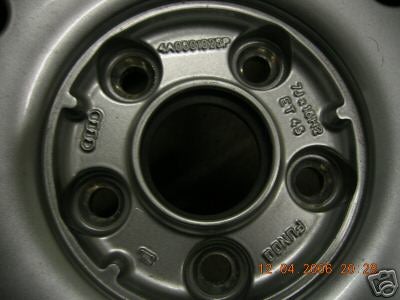

| Audi a4 flat 10 spoke | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 4a0 601 025 p z17 |
| Stock tire size | Center cap part # | 4b0 601 165 c z17 | |
| misc notes | 01-04 a6, 00-01 a4, 01-03 allroad | weight (lbs) | |
| misc notes | made by fundo | ||

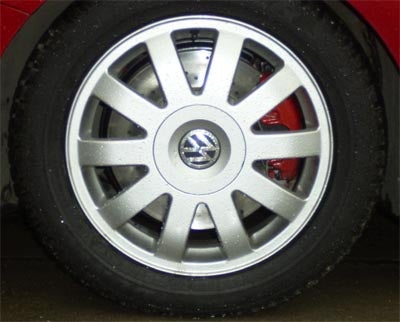

| Audi a4 wheel also avail as VW "lake placid" | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 40 | Wheel part # | 801 601 025 p z17 (VW#) 4b0 601 025 h (Audi#) |
| Stock tire size | Center cap part # | 3b0 601 149 k
grb (VW#) 4b0 601 165 c z17 (Audi#) |
|
| misc notes | 00-3 a4, 01-06 passat | weight (lbs) | |
| misc notes | both vw and audi # | ||

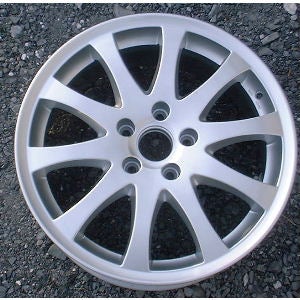

| Audi a4 Capezio | |||
| Wheel diameter (in.) | 17 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | weight (lbs) | ||

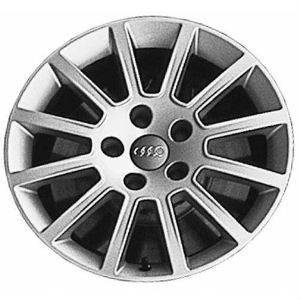

| Audi a4 thin 12 spoke | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 02-04 a4 | weight (lbs) | |
| Audi a4 convex2 | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 03-04 a4 | weight (lbs) | |

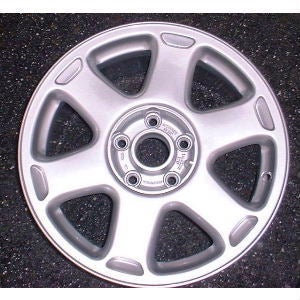

| Audi a6 avus | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 37 | Wheel part # | 895 601 025 M |
| Stock tire size | Center cap part # | 895 601 165 | |
| misc notes | 95-97 a6, s6 | weight (lbs) | |

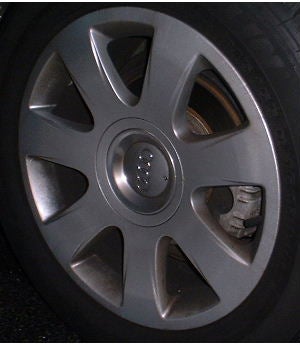

| Audi a4 contoured spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 02-05 a4 | weight (lbs) | |
| misc notes | similar to below but from a4 and covered lug | ||

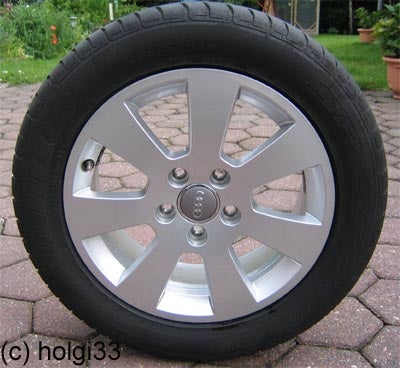

| Audi a3 OEM wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | 8p0 601 025 a z17 | |
| Stock tire size | Center cap part # | 4b0 60 170 a 7zj | |
| misc notes | 04-06 a3 | weight (lbs) | |
| misc notes | similar to above but from a3 and exposed lug | ||

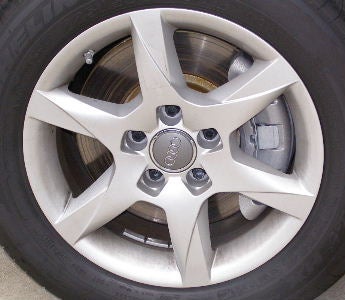

| Audi a6 angle spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | ? |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 07 a6 3.2 front trak | weight (lbs) | |

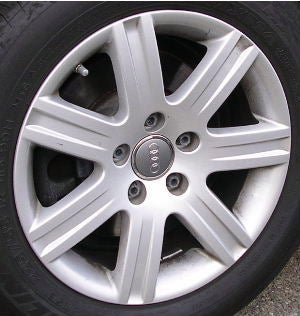

| OEM Audi a6 grooved spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 05-06 a6 3.2 | weight (lbs) | |
| Audi flared5 spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 02-04 a6, 02-03 allroad | weight (lbs) | |

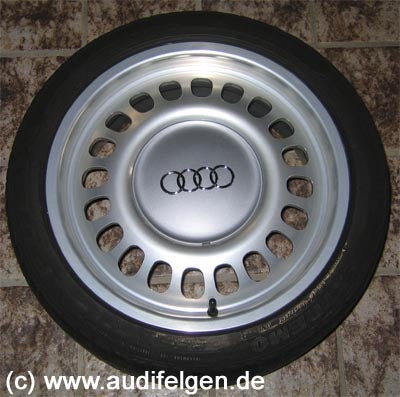

| Audi a8 Forged wheel with holes | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | 4d0 601 025 g z33 or 4d0 601 025 m z33 | |
| Stock tire size | Center cap part # | 4d0 601 025 025 m or 4d0 601 165 b 7zj | |
| misc notes | FORGED, 94-03 a8/s8 | weight (lbs) | |

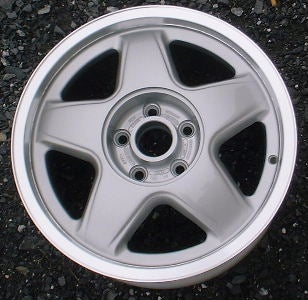

| Audi a6 5 spoke wheel | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 8 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 35 or 40 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 95-97 a6, 93-94 audi 100 | weight (lbs) | |
| Dynamic in 7" wide | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 42 | Wheel part # | 4f0 601 025 8z8 |
| Stock tire size | Center cap part # | 4b0 601 170 a 7zj | |
| misc notes | weight (lbs) | ||

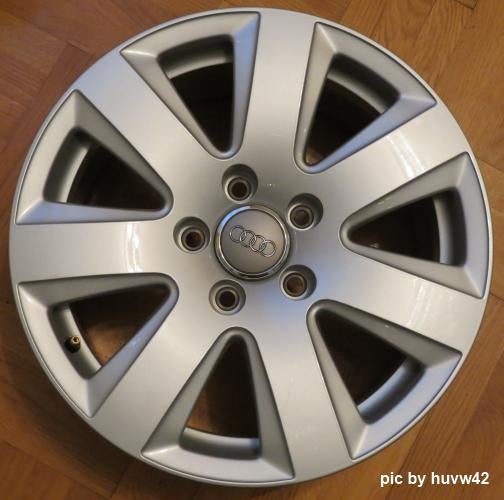

| Dynamic in 7.5" wide | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7.5 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 4f0 601 025 aj 8z8 |
| Stock tire size | 225/55/16 | Center cap part # | 4b0 601 170 a 7zj |
| misc notes | thanks for the tip huvw42! | weight (lbs) | 17.4 |

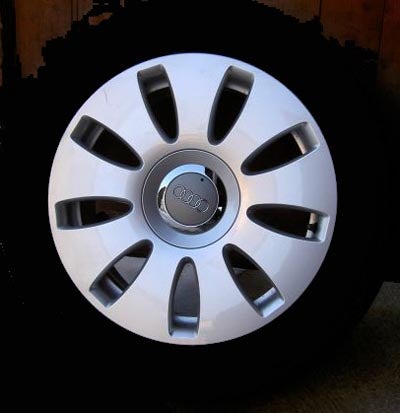

| Audi flute spoke wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 42 | Wheel part # | 8e0 601 025 ae |
| Stock tire size | Center cap part # | 4b0 601 165 sra | |
| misc notes | 05-06 a4 | weight (lbs) | |

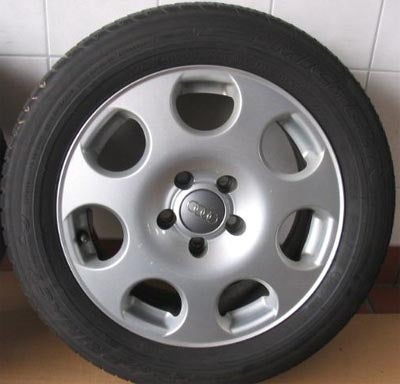

| audi phone dial wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 42 | Wheel part # | 8e0 601 025 f z17 |
| Stock tire size | Center cap part # | 8d0 601 170 z17 | |
| misc notes | 01-06 a4 | weight (lbs) | |

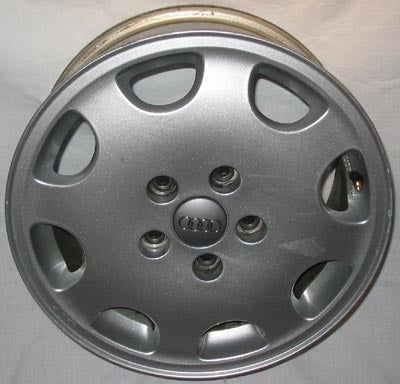

| audi Benz style wheel | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 5x112 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 8d0 601 025 f z17 |
| Stock tire size | Center cap part # | 8d0 601 170 a 7zj | |
| misc notes | 95-01 a4 a6 | weight (lbs) | |
These wheels are listed for comparison purposes - they do not match any newer VW/Audi wheel bolt pattern. They look identical to 5x112 bolt pattern wheels so be careful and count the bolt holes if you are looking to purchase one of these wheels!
| Audi 90 | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x108 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 37 | Wheel part # | |
| misc notes | audi 90 | weight (lbs) | |
| a6 grooved spokes | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 4x108 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| misc notes | audi cabriolet | weight (lbs) | |

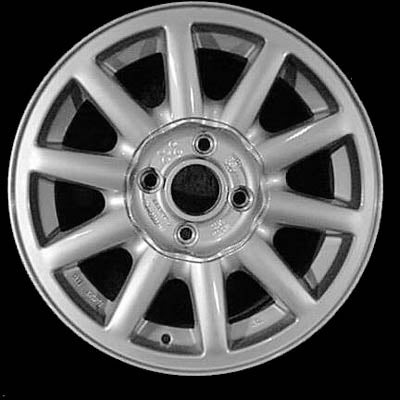

| Audi a6 cabriolet wheels | |||
| Wheel diameter (in.) | 16 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 4x108 | Wheel centerbore (mm) | 57.1 |
| misc notes | audi cabriolet | weight (lbs) | |
| Audi thin 10 spoke | |||
| Wheel diameter (in.) | 15 | Wheel width (in.) | 7 |
| Wheel lug pattern (mm) | 4x108 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 37 | Wheel part # | |
| misc notes | audi cabriolet, audi 90 | weight (lbs) | |
Search the site for more wheels:
