15" and 16" 4x100 OEM VW wheel gallery

Here are part numbers and specs of 15-16" OEM VW wheels that use 4x100 hubs.

Do you have a better picture or see an error?  Please post the correction in the forums or email me atand I will change it asap for your benefit, thank you!  Suggested tire size for 15" wheel when used on a TDI: 195-55-15

back to 1000q: VW and Audi wheel gallery index

VW le castellet wheels 6" wide
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 35 Wheel part # 357 601 025G
Stock tire size 205/50/15 Center cap part # 58mm center cap
misc notes OEM on91 passat, 90-92 jetta, 88-92 rabbit convertible weight (lbs)
misc notes FORGED, also avail in 14"
VW le castellet wheels 6.5" wide
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 33 Wheel part # 191 601 025T
Stock tire size 205/50/15 Center cap part # 58mm center cap
misc notes 1991-93 b3 16v syncro passats  weight (lbs)
misc notes FORGED, also avail in 14"

VW imola wheels
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) ? Wheel part #
Stock tire size   Center cap part #
misc notes 97-99 golf, jetta weight (lbs)
misc notes imola is Italian town and host to San Marino F1 circuit, also available as 14x6, this black/machined face wheel was only available as rare Canadian accessory wheel (thanks for the tip, Parklife!)
VW ancora wheels
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 40 Wheel part # 6no 071 491 666
Stock tire size Center cap part #
misc notes weight (lbs)
misc notes

VW twist wheels
Wheel diameter (in.) 15 Wheel width (in.) 7
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 38 Wheel part # 1h6 071 492 666
Stock tire size Center cap part #
misc notes weight (lbs)
misc notes

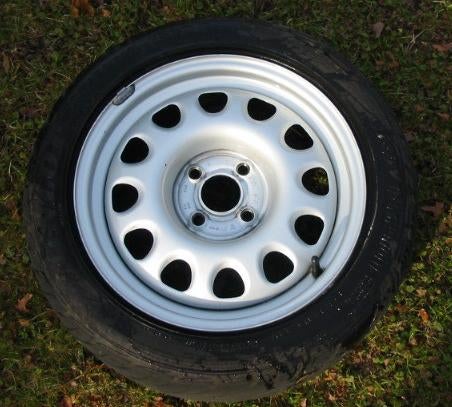

VW OEM Corrado steel wheel
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 35 Wheel part # 357 601 025m
Stock tire size 205/50R-15 Center cap part #
misc notes weight (lbs)
misc notes will not clear girling g60 brakes, steel wheels

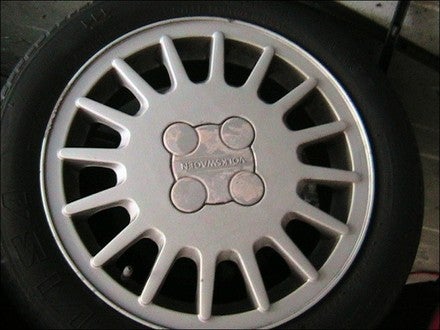

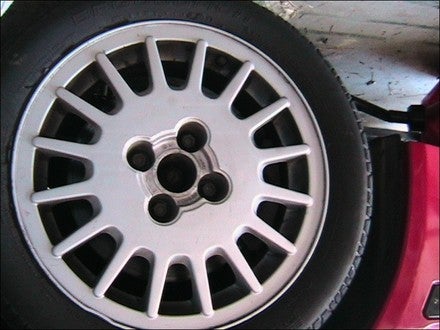

VW sebring wheels
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 35 Wheel part # 535 601 025
Stock tire size Center cap part #
misc notes from corrado g60 and 91-93 passat weight (lbs)  19
misc notes named after an airfield, now a racetrack

VW estoril wheels
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 57.1
Wheel offset (mm) 35 Wheel part # 191 601 025Q or G
Stock tire size Center cap part #
misc notes 92-94 passat, corrado 16v weight (lbs)
misc notes named after a racetrack in Portugal

Rota slipstream
Wheel diameter (in.) 15-16 Wheel width (in.) 6.5-7
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 73
Wheel offset (mm) 40-45 Wheel part # 6no 071 491 666
Stock tire size Center cap part #
misc notes not OEM VW wheels but common wheel weight (lbs)
misc notes 11.9 lbs. alloy wheel, copy of 8 lb spoon wheel, need hubcentric rings



Borbet type T
Wheel diameter (in.) 16 Wheel width (in.) 7.5
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm) 73
Wheel offset (mm) 35 Wheel part #
Stock tire size Center cap part #
misc notes Not OEM VW Wheel but common wheel weight (lbs)
misc notes need hubcentric rings

VW OEM BBS RZ from g60 corrado
Wheel diameter (in.) 15 Wheel width (in.)
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm)
Wheel offset (mm) 33 Wheel part # #191 601 025 AE
Stock tire size 205/50-15 Center cap part #
misc notes OEM on corrado g60, 93-95 jetta weight (lbs)
misc notes forged, 16? lbs

VW BBS solitude
Wheel diameter (in.) 15 Wheel width (in.) 6
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm)
Wheel offset (mm) Wheel part #
Stock tire size Center cap part #
misc notes weight (lbs)
misc notes corrado, standard on "storm" trim, available with both vw and bbs centercap

BBS RS
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm)
Wheel offset (mm) Wheel part #
Stock tire size Center cap part #
misc notes weight (lbs)
misc notes similar to bbs rm but with larger center "webbing", also 3 piece wheel

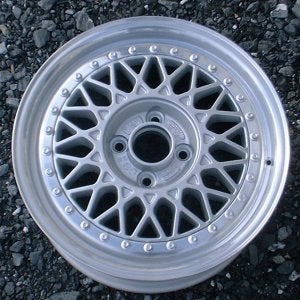

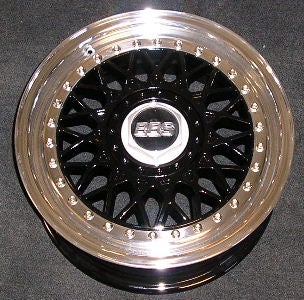

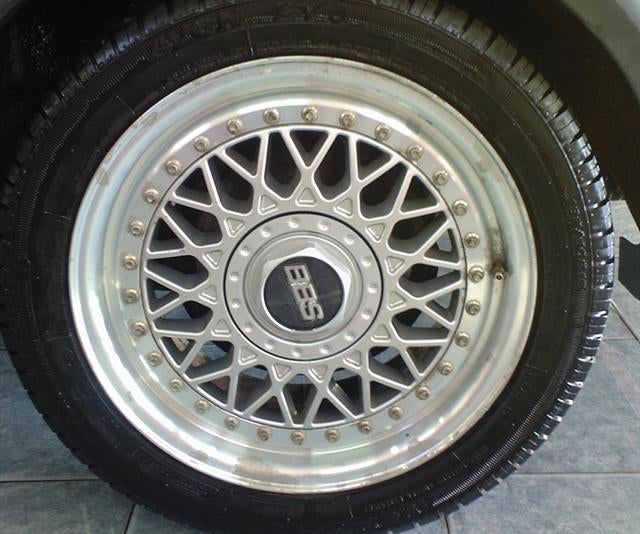

VW OEM BBS RM
Wheel diameter (in.) 15 Wheel width (in.) 6.5
Wheel lug pattern (mm) 4x100 Wheel centerbore (mm)
Wheel offset (mm) 33 Wheel part # 191 601 025 R
Stock tire size Center cap part #
misc notes 2 piece wheel 16 lbs? cast weight (lbs)
misc notes from the 90-92 golf gti 2.0L 16 valve, g60 corrado, and passat
