back to 1000q: VW and Audi wheel gallery index
Do you have a better picture or see an error? Please post the correction
in the forums or email me at
and
I will change it asap for your benefit, thank you! Please note that there
are a few wheels which look the same but have different widths/offsets.
The suggested tire size for 14" wheels when used with a TDI: 195-60-14, this
is the stock size.
| OEM VW Ronal Teddy | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 601 VAG 047 |
| Stock tire size | 185/60/14 | Center cap part # | |
| misc notes | made by Ronal | weight (lbs) | |
| misc notes | dealer option for rabbit, dasher, ...unique...also avail in rare 13"for polo golf (non US car) (car shown below is a rare Harlequin Golf) | ||

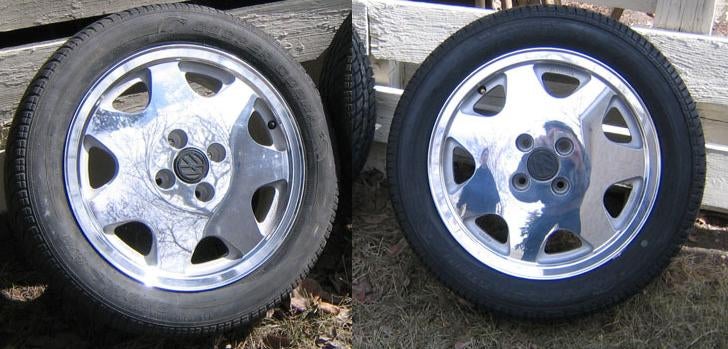

| 14" VW le castellet wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 191 601 025F 091 |
| Stock tire size | Center cap part # | 58mm center cap | |
| misc notes | FORGED, also avail in 15x6 and 15x6.5 | weight (lbs) | 15.4 |
| misc notes | scirroco gtx, 91 passat, 90-92 jetta, 88-92 rabbit convertible | ||
.jpg)
| VW zandvoort wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 191 601 025P |
| Stock tire size | Center cap part # | ||
| misc notes | 92-94 passat, 95-97 passat, 89-91 golf, 86-91 jetta, 90-93 cabrio | weight (lbs) | |
| misc notes | (also avail in 13"), named after a town in Netherlands | ||
| OEM BBS RD | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6.5 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 33 | Wheel part # | |
| Stock tire size | Center cap part # | ||
| misc notes | 601 bbs 058 | weight (lbs) | |
| misc notes | rabbit, golf, scirocco | ||
| VW BBS RA in 5.5" | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 5.5 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 871 601 025 091 |
| Stock tire size | Center cap part # | ||
| misc notes | weight (lbs) | ||
| misc notes | |||
| VW BBS RA in 6" | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | #111 999 652 sbbs |
| Stock tire size | Center cap part # | ||
| misc notes | weight (lbs) | ||
| misc notes | 89-92 golf, 89-92 VW GLI GTI, scirocco, passat, vento | ||

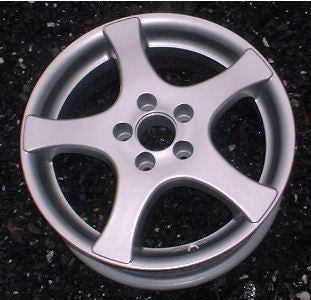

| VW reggae wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | 1h6 071 494 666 | |
| Stock tire size | Center cap part # | 1C0 071 214 | |
| misc notes | 99-02 jetta, golf, beetle | weight (lbs) | |
| misc notes | also available in 15 5x100 and 16 5x100 | ||

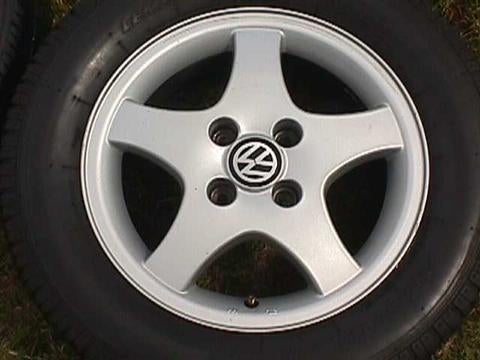

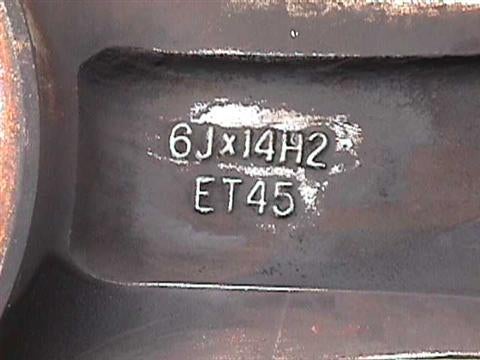

| VW flying wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 1HM 601 025F 091 |
| Stock tire size | Center cap part # | 321 601 171 C | |
| misc notes | 96-99 golf/jetta, 99-02 golf conv. | weight (lbs) | |
| misc notes | |||
| VW rondo wheel | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | 1H0 071 499A 666 | |
| Stock tire size | Center cap part # | ||
| misc notes | 93-99 jetta, golf | weight (lbs) | |
| misc notes | |||

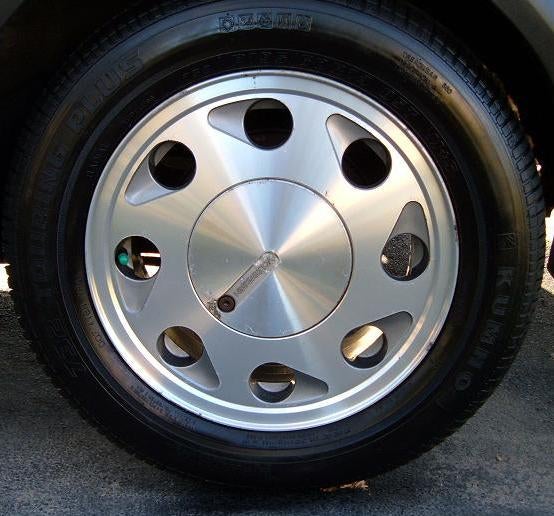

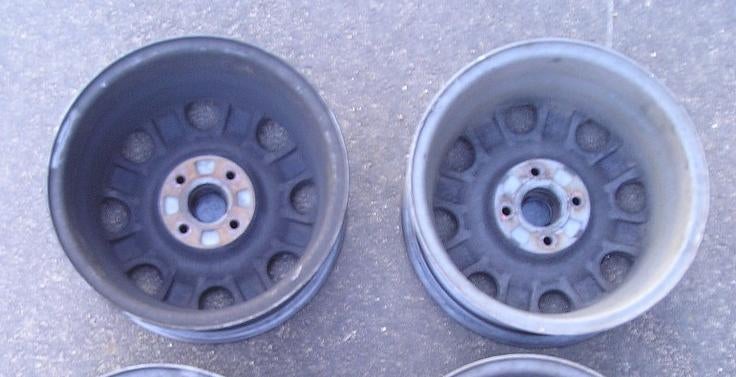

| VW silverstone , aka "teardrops" wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 321 601 025N |
| Stock tire size | Center cap part # | 21 601 149A | |
| misc notes | weight (lbs) | ||
| misc notes | 86-92 jetta, 91-92 golf, cabrio, 93 audi cabriolet, scirroco 16v | ||

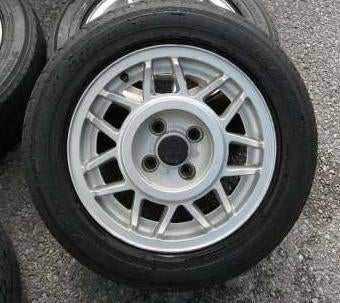

| VW correct name is avus. aka scala or snowflakes wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 171 601 025H |
| Stock tire size | Center cap part # | 321 601 171 C | |
| misc notes | weight (lbs) | ||
| misc notes | 86-87 rabbit. gti, cabrio, 83-92 jetta, scirocco | ||

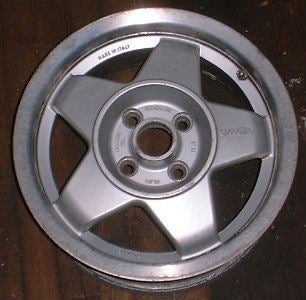

| VW 5 spoke wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | Wheel part # | ||
| Stock tire size | Center cap part # | ||
| misc notes | 85-92 golf, 90-91 passat | weight (lbs) | |
| VW "vw design" votex ronal | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 33 | Wheel part # | 191 071 490 |
| Stock tire size | Center cap part # | ||
| misc notes | 85-91 golf, 81-89 jetta | weight (lbs) | |
| misc notes | each spoke looks like the VW syumbol, also avail in 13" | ||

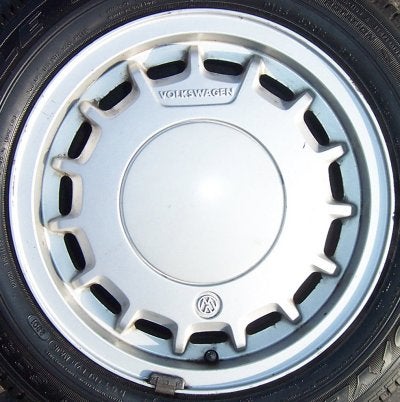

| VW montreal wheel | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 191 601 025B 091 |
| Stock tire size | 185/60- 14 | Center cap part # | 191 601 149 V7L |
| misc notes | weight (lbs) | ||
| misc notes | 85-88 golf, jetta ,Golf GTI MK2 16V & Scirocco 16V Standard fitment. Also used on the Scirocco MK2 Storm | ||
| VW larado "votex?" wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 33 | Wheel part # | 1H6 071 49O 666 |
| Stock tire size | 185/60/14 | Center cap part # | |
| misc notes | 94-99 golf | weight (lbs) | |
| misc notes | center caps are marked "votex", votex made a few other wheels | ||

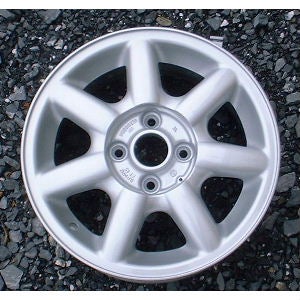

| VW orlando | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 1H0 601 025R |
| Stock tire size | Center cap part # | 1H0 601 149K V7L | |
| misc notes | jetta/golf | weight (lbs) | |
| misc notes | VW symbol on centercap may be colored, some may be silver painted | ||

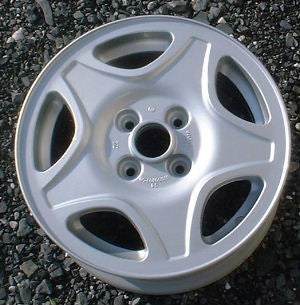

| VW imola wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 45 | Wheel part # | 1H0 601 025D |
| Stock tire size | Center cap part # | 321 601 171 C or 1H0 601 151E 01C | |
| misc notes | 97-99 golf, jetta | weight (lbs) | |
| misc notes | imola is Italian town and host to San Marino F1 circuit, also available as 15x7 painted black w/machined face, a rare Canadian accessory wheel (thanks for the tip, Parklife!) | ||

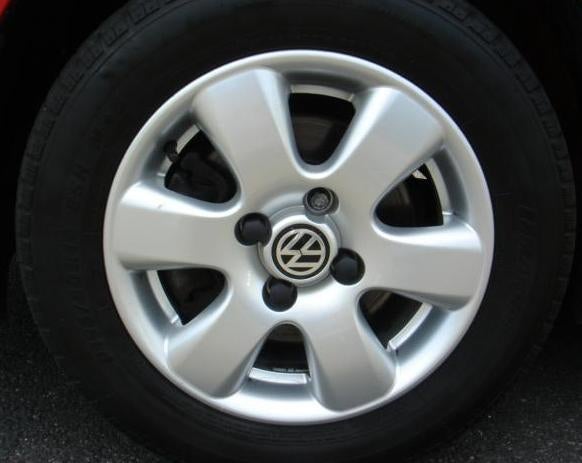

| VW zuzuka | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 43 | Wheel part # | 6X0 601 025D Z31 |
| Stock tire size | Center cap part # | 6N0 601 171 | |
| misc notes | 99-02 golf conv. cabrio | weight (lbs) | |

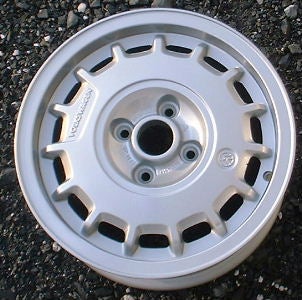

| VW pirelli "p slots" wheels | |||
| Wheel diameter (in.) | 14 | Wheel width (in.) | 6 |
| Wheel lug pattern (mm) | 4x100 | Wheel centerbore (mm) | 57.1 |
| Wheel offset (mm) | 38 | Wheel part # | 171 601 025A |
| Stock tire size | Center cap part # | ||
| misc notes | weight (lbs) | ||
| misc notes | 86-89 jetta, 1985 scirroco gtx, from golf gti "pirelli edition" | ||
